How to Easily Set Constant Speed Drive ACS580 ABB
ACS508 drive is a type of Variable Speed Drive common in short VSD, this tool is a motor speed regulator by changing the value of frequency and voltage that goes into the electric motor.
This frequency and voltage value setting is intended to get the desired rotation and torque speed of the motor or according to our needs.
HOW TO SET CONSTANT FREQUENCY DRIVE ACS580
Before we do the setting of the drive parameters, the following are the drive specifications that will be used for the application material of this tutorial, here are the specifications:
Type : ACS580-01-062A-4
Input
U1 3phase 400/480 VAC
I1 62/52 A
F1 50/60 Hz
Output
U2 3phase 0…U1
I2 62/52 A
F2 0…500Hz
Frame : R4
Air cooling
IP21
Icc 100 Ka
Sn: 3202308695
The above specifications are drives that we will use as the material of this article, let's start to discuss the article that is How to set Constant Speed Drive ACS580, here's how:
MENU
A.We will start going to the settings menu, please press the "Menu" button on the lower left side, then the display will display the Main menu.
PRIMARY SETTINGS
Next stage, please select "Primary settings" to enter the up or down button, then press the "Select" button on the lower left side to open it.
START, STOP, REFERENCE
C.The next stage, now we have entered the Main menu Primary settings, then please select "Start, stop, reference" by using the Up or Down button to choose, if you have please click "select" on the lower left side to open it.
D.The next stage, we have entered the Start menu, stop, reference, then please Reference From: AI2 directly as below becomes "Not selected" and then please save by clicking the "Save" button which is on the left side of the bottom.
The results will be as below:
CONSTANT FREQUENCIES

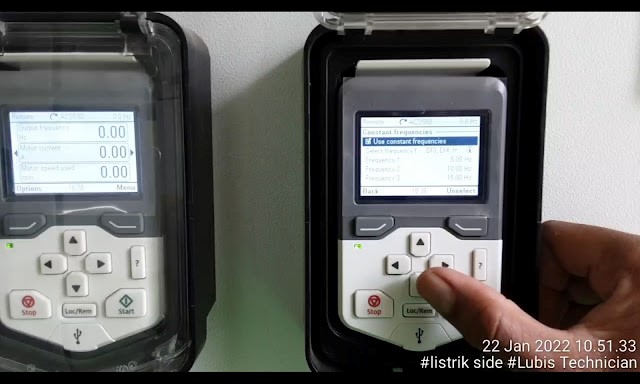

E. Next we will set Constant Frequencies, please click the "Select" button on the bottom side of the left, to open it.
It will open as shown below:
If it is open, the word "Select frequency from" will be selected "Constant Frequency 1" as shown below:
After that, do not forget Frequency 1 in the change to such as 50Hz to keep the frequency at 50Hz. Like the picture below:
Until here, we are done to make changes to the setting of Constant Speed Drive ACS580. Next please press the "Back" button on the bottom side of the right to return to metering.
Well, from the article above are you still a snub? If so, please see the video version below:
The above article is my way to make a parameter change from reference from AI2 to Constant Speed at 50Hz. If there is a mistake in the creation of this article, please write your comments in the comments field below this article, so that we can improve the article well and can be useful for all of us.
